Bissell QUICKSTEAMER 2050 User Manual. Lightweight deep cleaner. Vacuum Cleaner Bissell QUICKSTEAMER 2080 Series User Manual (12 pages). Belt and Brush Removal - 2050 Series only.QuickSteamer PowerBrush models only Turn the machine off and unplug from wall outlet. Remove clean and dirty water tanks. Quicksteamer. Read online or download PDF. Bissell QuickSteamer 1770 series User Manual. Bissell manuals. QuickSteamer 1770 series. Manual Bissell QuickSteamer 1770 series User Manual Quicksteamer. 2080, 2090 SERIES. Find Genuine BISSELL Parts & Supplies for your QuickSteamer PowerBrush Carpet Cleaner Series 47B21. Shopping Cart. Exclusive Offer for Email Subscribers! Get free shipping on any order over $40! Free Shipping on Any Order Over $40! Manual Sweeper ». The Bissell QuickSteamer carpet cleaner has six rows of brushes to clean dirt that is embedded in carpet and rugs. It is a light-weight machine that weighs 12 pounds and has a self-storing cord. Here's how to use your Bissell QuickSteamer.

QuickSteamer®

U S E R ’ S G U I D E

1770, 1970, 2080, 2090 SERIES

3Safety Instructions

4Product View

5Assembly

5-7Operation

8Maintenance and Care

9Troubleshooting

10Consumer Services

11Replacement Parts

11Additional Accessories

12Warranty

Thanks for buying a BISSELL QuickSteamer®

We’re glad you purchased a BISSELL QuickSteamer lightweight deep cleaner. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system.

Your QuickSteamer is well made, and we back it with a limited one-year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your QuickSteamer.

Thanks again, from all of us at BISSELL.

Mark J. Bissell

President and Chief Executive Officer

When using an electrical appliance, basic precautions should be observed, including the following:

Read all instructions before using your QUICKSTEAMER®

WARNING:To reduce the risk of fire, electric shock, or injury:

■Do not immerse.

■Use only on surfaces moistened by cleaning process.

■Always connect to a properly grounded outlet.

See Grounding Instructions.

■Unplug from outlet when not in use and before conducting maintenance or troubleshooting.

■Do not leave machine when it is plugged in.

■Do not service machine when it is plugged in.

■Do not use with damaged cord or plug.

■If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized Service Center.

■Do not expose to rain. Store indoors.

■Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, run appliance over cord, or expose cord to heated surfaces.

■Do not carry the appliance while in use.

■Do not unplug by pulling on cord. Unplug by grasping the plug, not the cord.

■Do not handle plug or appliance with wet hands.

■Do not put any object into appliance openings, use with blocked opening, or restrict air flow.

■Do not expose hair, loose clothing, fingers or body parts to openings or moving parts.

■Do not pick up hot or burning objects.

■Do not pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapor.

■Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.

■Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, gasoline, etc.).

■Do not modify the 3-prong grounded plug.

■Do not allow to be used as a toy.

■Do not use for any purpose other than described in this user’s guide.

■Use only manufacturer’s recommended attachments.

■Use only cleaning products formulated by

BISSELL for use in this appliance to prevent internal component damage. See the Cleaning Fluid section of this guide.

■Keep openings free of dust, lint, hair, etc.

■Keep appliance on a level surface.

■Turn off all controls before unplugging.

■Be extra careful when cleaning stairs.

w w w . b i s s e l l . c o m

■Close attention is necessary when used by or near children.

SAVE THESE INSTRUCTIONS.

THIS MODEL IS FOR HOUSEHOLD USE ONLY. Commercial use of this unit voids the manufacturer’s warranty.

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. The cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is

properly installed and grounded in accordance with all local codes and ordinances.

Grounded

Outlets

Grounding Pin

WARNING: Improper

connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren’t sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the drawing above. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

Power

Cord

Lower

Cord Wrap

Upper Body

Lower

Body

Collection

Tank

Removable

Nozzle

Cleaning fluid

Spray Trigger

Quick Release

Handle Cord Wrap™

Assembly

Solution Tank

Vent Cover (Containing Foam Filter)

Power Switch

WARNING:

To reduce the risk of fire and electric shock due to internal component damage, use only BISSELL cleaning fluids intended for use with the deep cleaner. Non-BISSELL cleaning solutions may harm the machine and void the warranty.

Keep plenty of genuine BISSELL 2X Fiber Cleansing Formula™ on hand so you can clean and protect whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas. Non-BISSELL cleaning solutions may harm the machine and will void the warranty.

Before you clean

1.Remove easily moved furniture (chairs, lamps, coffee/cocktail tables, etc.) from room if needed.

2.Vacuum carpet thoroughly.

3.Decide where to begin. Plan to leave a path open to empty soiled water and refill cleaner.

Note: Carpeting will dry in three to four hours, depending on carpet style and air circulation in room. A floor fan speeds drying

Fill the tank

1.Remove the solution tank by lifting it straight up, then away from the lower body.

2.Unscrew the black cap at the bottom of the solution tank.

3.Fill to the FORMULA line with BISSELL 2X Fiber Cleansing formula. Fill the rest of the tank with hot (not boiling) tap water to the water fill line. Replace and tighten the black cap.

4.Place solution tank on lower body.

5.Rotate Quick Release Cord Wrap™ to release the power cord and plug into an outlet.

Pre-Treating

Pre-treat stubborn stains and highly soiled carpet in hallways and other high-traffic areas.

1.Generously spray BISSELL Tough Stain pre-cleaner evenly over soiled area. DO NOT OVERWET CARPET

2.Wait 3-5 minutes before deep cleaning.

Tip:

Deep cleaning spots, spills and high traffic areas on a regular basis can prolong carpet life.

WARNING:

To reduce the risk of fire, use only BISSELL advanced cleaning formulas for deep cleaning machines. Use

of cleaning formulas that contain lemon or pine oil may damage this appliance and void warranty. Chemical spot cleaners or solventbased soil removers should not be used. These products may react with the plastic materials used in your QuickSteamer, causing cracking or pitting.

Operation

Carpet cleaning

1.With your foot, press the red power switch [located in foot of unit] ON .

2.With foot, press the detent lever on left side of lower body.

3.Depress spray trigger to spray cleaning solution.

Do not overwet.

4.To suction up water, repeat motion over same area without pressing trigger.

5.Repeat steps 3 and 4 until no more dirt can be removed.

6.Continue to clean entire carpet, working in 3’ x 4’ sections.

7.Empty the collection tank when dirty water reaches the full line, or when the solution tank is empty.

8.If floor nozzle stops spraying, turn power switch OFF and check water and cleaning solution levels. Refill if needed.

To empty the collection tank

2a

1.Turn power switch OFF and unplug power cord from outlet.

2.Remove and empty collection tank.

a.Release collection tank latches [1 each side] by pulling up from bottom of latch and then out.

b.Carefully remove collection tank from lower body by lifting handle.

c.Carry collection tank to a toilet or sink. To empty, pour out contents using opening at back of tank.

d.Rinse collection tank thoroughly.

e.Remove lint and hair from red gasket in base of unit. (Do not remove gasket)

3.Clean nozzle window by lifting latch and removing from machine. Rinse under running water. When finished replace nozzle and secure with latch.

Tip:

It is recommended that every time your solution tank needs refilling, that you empty the contents of the collection tank. If the collection tank gets too full, you may begin to see foam spitting out of the vent cover. If this happens empty the collection tank.

2b.

2e

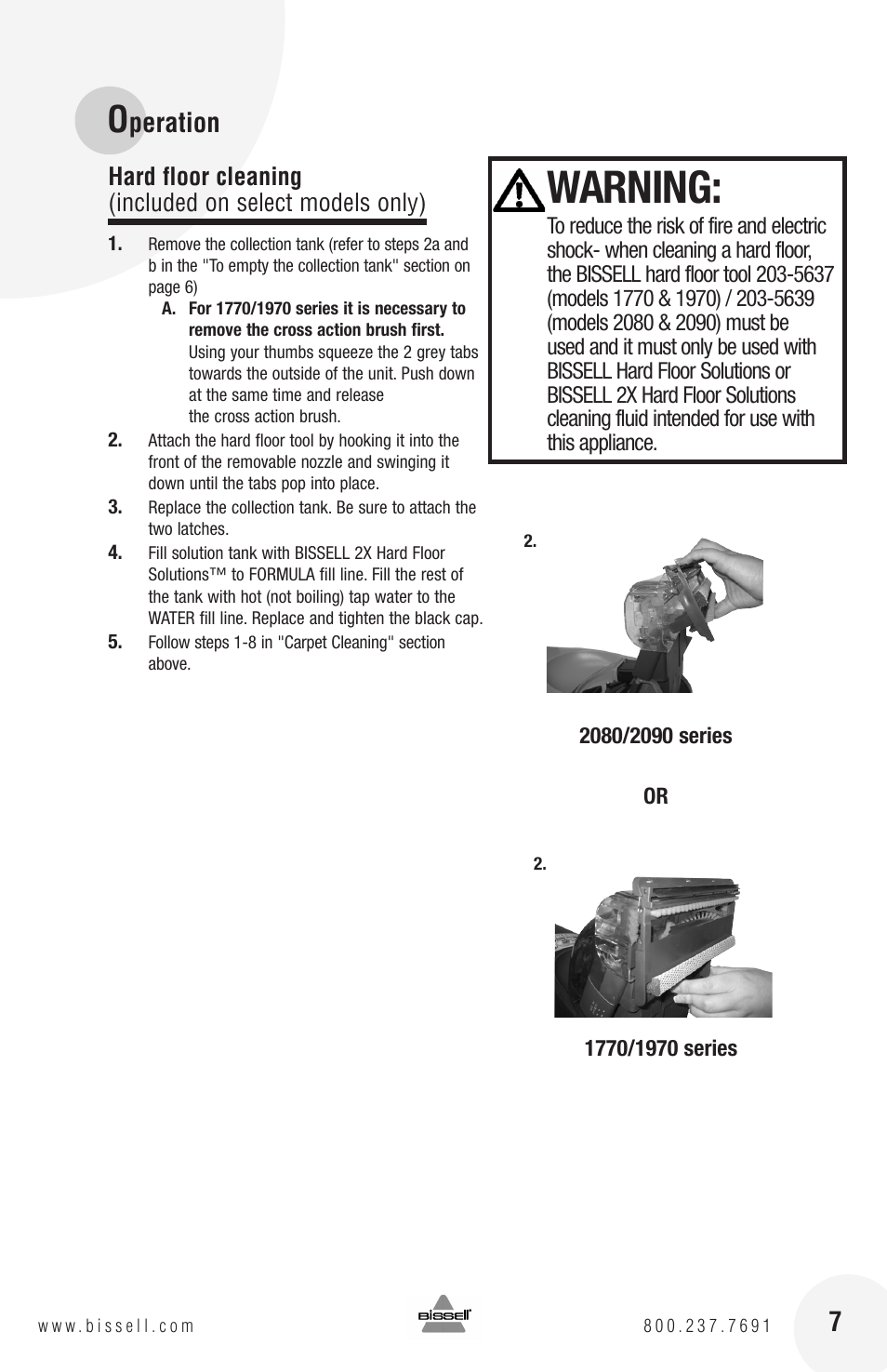

Operation

Hard floor cleaning

(included on select models only)

1.Remove the collection tank (refer to steps 2a and b in the 'To empty the collection tank' section on page 6)

A.For 1770/1970 series it is necessary to remove the cross action brush first.

Using your thumbs squeeze the 2 grey tabs towards the outside of the unit. Push down at the same time and release

the cross action brush.

2.Attach the hard floor tool by hooking it into the front of the removable nozzle and swinging it down until the tabs pop into place.

3.Replace the collection tank. Be sure to attach the two latches.

4.Fill solution tank with BISSELL 2X Hard Floor Solutions™ to FORMULA fill line. Fill the rest of the tank with hot (not boiling) tap water to the WATER fill line. Replace and tighten the black cap.

5.Follow steps 1-8 in 'Carpet Cleaning' section above.

WARNING:

To reduce the risk of fire and electric shockwhen cleaning a hard floor, the BISSELL hard floor tool 203-5637 (models 1770 & 1970) / 203-5639 (models 2080 & 2090) must be used and it must only be used with BISSELL Hard Floor Solutions or BISSELL 2X Hard Floor Solutions cleaning fluid intended for use with this appliance.

2.

Maintenance and care

Machine storage

1.Wrap power cord around Quick Release Cord Wrap™ on side of QuickSteamer®.

2.Wipe all surfaces with a soft cloth. Store cleaner

upright in a protected, dry area.

NOTE: You may have cleaning solution remaining in the clean/solution tank. You may store your QuickSteamer this way for the next cleaning task, but never keep soiled solution in the collection tank.

To install the replacement brush belt

*QuickSteamer PowerBrush models only

1.Turn the machine off and unplug from wall outlet.

2.Remove solution and collection tanks.

3.Lie machine down to access the bottom of the machine.

5.Remove the brush end cap and remove belt from brush.

6.Brush can now be removed.

7.Belt can be removed by sliding off the motor pulley.

8.Clean or replace belt. Attach belt to motor pulley and brush, insert brush into right side end cap.

9.Reattach the left end cap and slide brush back into place.

10.Replace the brush cover and screw into place.

WARNING:

To reduce the risk of injury from moving parts and/or electrical shock, turn power switch OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.

CAUTION:

Do not store unit where freezing may occur. Damage to internal components may result.

Brush Cover

4.

5. 5a.

6. 7.

8. 9.

Troubleshooting

Reduced spray or no spray

Other Maintenance or Service not included above should be performed by an authorized service representative.

Thank you for selecting a BISSELL product.

Please do not return this product to the store

For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.

BISSELL Consumer Services

For information about repairs or replacement parts, or questions about your warranty, call:

BISSELL Consumer Services 1-800-237-7691

Or write:

BISSELL HOMECARE, INC

PO Box 3606

Grand Rapids MI 49501

ATTN: Consumer Services

Or visit the BISSELL website - www.bissell.com

When contacting BISSELL, have model number of unit available.

Please record your Model Number: ___________________

Please record your Purchase Date: ___________________

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim. See 'Warranty' on page 12 for details.

Please register your new BISSELL product at www.bissell.com/productregistration

Replacement parts - BISSELL QuickSteamer

QuickSteamer – 1770/1970 Series

1203-5519 Handle Assembly

2203-5545 Cross Action Brush

3203-5537 Solution Tank (Includes Cap and Insert Assembly)

4203-5522 Collection Tank

5203-5637 Hard Floor Tool, provided with trial size Hard Floor Solutions™ formula

6203-5541 Solution Tank Cap and Insert Assembly

QuickSteamer PowerBrush – 2080/2090 Series

3203-5540 Solution Tank (Includes Cap and Insert Assembly)

4203-5523 Collection Tank

Additional Accessories

Earn Rewards Points!

To qualify you for discounts, rebates, and other BISSELL perks.

Visit www.bissell.com/rewards to learn more.

Warranty - BISSELL QuickSteamer

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may

cover, please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below.

Limited One Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare, Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.

See information below on 'If your BISSELL product should require service'.

This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User's Guide is not

covered.

If your BISSELL product should require service:

Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in your area.

If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Services.

Website or E-mail: www.bissell.com

Use the “Customer Services” tab.

Or Call:

BISSELL Consumer Services 1-800-237-7691

Monday - Friday 8 a.m. - 10 p.m. ET Saturday 9 a.m. - 8 p.m. ET

Or write:

BISSELL Homecare, Inc. PO Box 3606

Grand Rapids MI 49501

ATTN: Consumer Services

BISSELL HOMECARE, INC. IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

NOTE: Please keep your original sales receipt, it is your warranty.

©2009 BISSELL Homecare, Inc Grand Rapids, Michigan

All rights reserved. Printed in China Part Number 120-4109

Rev 06/09

Visit our website at: www.bissell.com

Scotchgard is a trademark of 3M

QuickSteamer®

U S E R ’ S G U I D E

1770/1970 SERIES QUICKSTEAMER 2080 SERIES QUICKSTEAMER POWERBRUSH 2090 SERIES QUICKSTEAMER MULTISURFACE

3Safety Instructions

4Product View

5Assembly

6-8Operations

8-9Maintenance

10 Troubleshooting

10Consumer Services

11Replacement Parts

12Warranty

Thanks for buying a BISSELL QuickSteamer®

We’re glad you purchased a BISSELL QuickSteamer Lightweight deep cleaner. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system.

Your QuickSteamer is well made, and we back it with a limited oneyear warranty. We also stand behind it with a knowledgeable, dedicated

Consumer Services department, so, should you ever have a problem, you’ll receive fast, considerate assistance.

My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your QuickSteamer .

Thanks again, from all of us at BISSELL.

Mark J. Bissell

President and Chief Executive Officer

When using an electrical appliance, basic precautions should be observed, including the following:

Read all instructions before using your QUICKSTEAMER®

WARNING: To reduce the risk of fire, electric shock, or injury:

■Do not immerse.

■Use only on surfaces moistened by cleaning process.

■Always connect to a properly grounded outlet.

See Grounding Instructions.

■Unplug from outlet when not in use and before conducting maintenance or troubleshooting.

■Do not leave machine when it is plugged in.

■Do not service machine when it is plugged in.

■Do not use with damaged cord or plug.

■If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized Service Center.

■Do not expose to rain. Store indoors.

■Do not pull or carry by cord, use cord as a handle, close door on cord, pull cord around sharp corners or edges, run appliance over cord, or expose cord to heated surfaces.

■Do not carry the appliance while in use.

■Do not unplug by pulling on cord. Unplug by grasping the plug, not the cord.

■Do not handle plug or appliance with wet hands.

■Do not put any object into appliance openings, use with blocked opening, or restrict air flow.

■Do not expose hair, loose clothing, fingers or body parts to openings or moving parts.

■Do not pick up hot or burning objects.

■Do not pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapor.

■Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.

■Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, gasoline, etc.).

■Do not modify the 3-prong grounded plug.

■Do not allow to be used as a toy.

■Do not use for any purpose other than described in this User’s Guide.

Bissell Quicksteamer Powerbrush Manual

■Use only manufacturer’s recommended attachments.

■Use only cleaning products formulated by

BISSELL for use in this appliance to prevent internal component damage. See the Cleaning Fluid section of this guide.

■Keep openings free of dust, lint, hair, etc.

■Keep appliance on a level surface.

■Turn off all controls before unplugging.

■ Be extra careful when cleaning stairs. w w w . b i s s e l l . c o m

■Close attention is necessary when used by or near children.

WARNING: The Power Cord on this product contains lead, a chemical known to the State of California to cause birth defects or other reproductive harm.

WASH HANDS AFTER HANDLING.

SAVE THESE INSTRUCTIONS.

THIS MODEL IS FOR HOUSEHOLD USE ONLY. Commercial use of this unit voids the manufacturer’s warranty.

GROUNDING INSTRUCTIONS

This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. The cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Grounded

Outlets

Grounding Pin

WARNING: Improper

connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren’t sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have

a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the drawing above. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.

Spray Trigger

Quick Release

Cord Wrap™

Clean Water/

Solution Tank

Lower Cord

Wrap

Upper Body

These items are available for purchase with your model. To order replacement parts or additional tools or formulas, please refer to page 11.

How to Use this Guide

This User’s Guide has been designed to help you get the utmost satisfaction from your BISSELL QuickSteamer Lightweight Deep Cleaner. You’ll find assembly and operating instructions, safety precautions, as well as maintenance and troubleshooting instructions. Please read this Guide thoroughly before assembling your

Deep Cleaner.

Pay particular attention to the product diagram, assembly instructions, and part names. Locate and organize all parts before assembly. Familiarize yourself with the parts and where they go. Following this User’s Guide will greatly enhance your ability to get the most performance from your BISSELL QuickSteamer for many years.

Your QuickSteamer comes in three, easy to assemble components:

Handle assembly Upper Handle assembly Clean/Solution Tank

3 Screws

The only thing you will need to assemble your cleaner is a Phillips head screwdriver.

Assembling Your QuickSteamer

1.Slide Upper Body into Lower Body.

2.Secure with Screws.

3.Slide Strain Reliever Handle down into Upper Body until it will go no further.

4.Secure with Screw.

5.Place Clean/Solution Tank on back of unit.

Special Features

Clean/Solution Tank - holds 1/2-gallon of hot water and cleaning solution.

Collection Tank - holds 1/2-gallon of dirty water.

Power Cord - for storage, wrap Power Cord around Upper and Lower Cord Wraps, and secure plug to Cord with molded clip.

w w w . b i s s e l l . c o m

Before You Clean

1.Plan activities to give carpet time to dry.

2.Remove easily moved furniture (chairs, lamps, coffee/cocktail tables, etc.) from room if needed.

3.Vacuum carpet thoroughly.

4.Decide where to begin — and end — your job. Clean in 3’ X 4’ sections, starting in areas farthest from exit. Plan to leave a path open to empty soiled water and refill cleaner.

5.Carpeting will dry in three to four hours, depending on carpet style and air circulation in room. A floor fan speeds drying.

6.Replace furniture on damp carpeting by placing waxed paper under legs until floor dries completely.

Fill the Tank

1.Remove the Clean/Solution Tank by lifting it straight up, then away from the Lower Body.

2.Unscrew the black cap at the bottom of the Clean/Solution Tank.

3.Add one of the BISSELL Advanced Cleaning formulas for Deep Cleaning machines to the formula fill line on the Clean/Solution tank. Fill the rest of the tank with hot (not boiling) tap water to the water fill line. Replace and tighten the black cap.

4.Place Clean/Solution Tank on Lower Body.

5.Rotate Quick Release Cord Wrap™ to release the Power Cord and plug into an outlet.

Pre-Treating

Pre-treat stubborn stains and highly soiled carpet in hallways and other high-traffic areas.

1.Using BISSELL Tough Stain pre-cleaner, generously spray evenly over soiled area, do not overwet carpet.

2.Wait 3 -5 minutes before deep cleaning.

WARNING:

To reduce the risk of fire, use only BISSELL Cleaning Formulas for Deep Cleaning Machines. Use of cleaning formulas that contain lemon or pine oil may damage this appliance and void warranty. Chemical spot cleaners or solvent-based soil removers should not be used. These products may react with the plastic materials used in your QuickSteamer, causing cracking or pitting.

Tip:

Always vacuum thoroughly before you deep clean. If possible, move large furniture to an area you will not be cleaning.

2.

Tip:

Deep cleaning spots, spills and high traffic areas on a regular basis can prolong carpet life.

Carpet Cleaning

1.With your foot, press the red Power Switch [located in foot of unit] ON.

2.With foot, press the Detent Lever on right side of Lower Body.

3.Depress Spray Trigger to spray cleaning solution.

Do not overwet.

4.To suction up water, repeat motion over same area without depressing Trigger.

5.Repeat Steps 3 and 4 until no more dirt can be removed.

6.Continue to clean entire carpet, working in 3’ x 4’ sections.

7.Empty the Collection Tank when dirty water reaches the full line, or when the Clean/Solution Tank is empty. See page 8 for instructions.

8.If Floor Nozzle stops spraying, turn Power Switch OFF and check water and cleaning solution levels. Refill if needed.

Hard Floor Cleaning

1.Attach Hard Floor Tool to Unit.

Bissell Quicksteamer Powerbrush Manual

2.Remove the Collection Tank (refer to #3a and b in the Routine Maintenance section on page 8)

A.For 1770/1970 series it is necessary to remove the Cross Action Brush first.

Using your thumbs squeeze the 2 grey tabs towards the outside of the unit. Push down at the same time and release the Cross Action Brush.

3.Attach the Hard Floor Tool by hooking it into the front of the removable nozzle and swinging it down until the tabs pop into place.

4.Replace the Collection Tank. Be sure to attach the 2 latches.

5.Fill Clean/Solution Tank with BISSELL Hard Floor Solutions™ to FORMULA fill line.

6.Fill Clean/Solution Tank with hot (not boiling) tap water to the WATER fill line.

7.Follow steps 1-8 in Deep Cleaning section above.

w w w . b i s s e l l . c o m

Tip:

It is recommended that every time your Clean/Solution Tank is

emptied of solution that you empty the contents of the Collection Tank. If the Collection Tank gets too full, you may begin to see foam

spitting out of the vent cover. When this happens you will know it is time to empty the Collection Tank.

3

2080/2090 series

3

1770/1790 series

Cleaning Fluid Section

Keep plenty of genuine BISSELL Fiber Cleansing Formula™ on hand so you can clean and protect whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas.

WARNING:

To Reduce the Risk of Fire and Electric Shock due to internal component damage, use only BISSELL cleaning fluids intended for use with the deep cleaner. NonBISSELL cleaning solutions may harm the machine and void the warranty.

Routine Maintenance

When You're Done

1.Turn Power Switch OFF.

2.Unplug Power Cord from outlet.

3.Remove and empty Collection Tank.

a.Release Collection Tank latches [1 each side] by pulling up from bottom of latch and then out.

b.Carefully lift Collection Tank from Lower Body.

c.Carry Collection Tank to a toilet or sink. To empty, pour out contents using opening at back of Tank.

d.Rinse Collection Tank thoroughly.

e.Remove lint and hair from Red Gasket in base of unit. (Do not remove gasket)

4.Clean Nozzle Window by lifting latch and removing from machine. Rinse under running water. When finished replace Nozzle and secure with latch.

5.Replace Collection Tank on Lower Body and secure with latches.

6.Wrap Power Cord around Quick Release Cord Wrap™ on side of QUICKSTEAMER®.

7.Wipe all surfaces with a soft cloth. Store cleaner upright in a protected, dry area.

NOTE: You may have cleaning solution remaining in the Clean/Solution Tank. You may store your QuickSteamer this way for the next cleaning task, but never keep soiled solution in the Collection Tank.

WARNING:

To reduce the risk of injury from moving parts and/or electrical shock, turn Power Switch OFF and disconnect plug from electrical outlet before performing maintenance or troubleshooting checks.

lift by handle

a. b.

Dirty

CAUTION:

Do not store unit where freezing may occur. Damage to internal components may result.

To Install the Replacement Brush Belt

*QuickSteamer PowerBrush models only

1.Turn the machine off and unplug from wall outlet.

2.Remove Clean/Solution and Collection Tanks.

3.Lie machine down to access the bottom of the machine.

5.Remove the Brush End Cap and remove belt from brush.

6.Brush can now be removed.

7.Belt can be removed by sliding off the Motor Pulley.

8.Clean or replace belt. Attach belt to Motor pulley and brush, insert brush into right side End Cap.

9.Reattach the left End Cap and slide brush back into place.

10.Replace the brush cover and screw into place.

Troubleshooting

Reduced Spray Or No Spray.

Thank you for selecting a BISSELL product.

If you should happen to need assistance during assembly or operations, call 1-800-237-7691

Please do not return this product to the store

BISSELL Consumer Services

For information about repairs or replacement parts, or questions about your warranty, call:

BISSELL Consumer Services 1-800-237-7691

Or write:

BISSELL HOMECARE, INC

PO Box 3606

Grand Rapids MI 49501

ATTN: Consumer Services

Or visit the BISSELL website - www.bissell.com

When contacting BISSELL, have model number of unit available.

Please record your Model Number: ___________________

Please record your Purchase Date: ___________________

NOTE: Please keep your original sales receipt. It provides proof of date of purchase in the event of a warranty claim. See 'Warranty' on page 12 for details.

Replacement parts - BISSELL QuickSteamer

Below is list of common replacement parts*. While not all of these parts may have come with your specific machine, all are available to you for purchase, if desired.

Item Part No. Part Name

QuickSteamer – 1770/1970 Series

QuickSteamer PowerBrush – 2080/2090 Series

Bissell Quicksteamer Troubleshooting

Warranty - BISSELL QuickSteamer

This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. If you need additional instruction regarding this warranty or have questions regarding what it may cover, please contact BISSELL Consumer Services by E-mail, telephone, or regular mail as described below.

Limited One Year Warranty

Subject to the *EXCEPTIONS AND EXCLUSIONS identified below, upon receipt of the product BISSELL Homecare, Inc. will repair or replace (with new or remanufactured components or products), at BISSELL’s option, free of charge from the date of purchase by the original purchaser, for one year any defective or malfunctioning part.

See information below on 'If your BISSELL product should require service'.

This warranty applies to product used for personal, and not commercial or rental service. This warranty does not apply to fans or routine maintenance components such as filters, belts, or brushes. Damage or malfunction caused by negligence, abuse, neglect, unauthorized repair, or any other use not in accordance with the User's Guide is not covered.

If your BISSELL product should require service:

Contact BISSELL Consumer Services to locate a BISSELL Authorized Service Center in your area.

If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Services.

Website or E-mail:

www.bissell.com

Use the “Customer Services” tab.

Or Call:

BISSELL Consumer Services 1-800-237-7691

Monday - Friday 8 a.m. - 10 p.m. ET Saturday 9 a.m. - 8 p.m. ET

Or write:

BISSELL Homecare Inc.

PO Box 3606

Grand Rapids MI 49501

ATTN: Consumer Services

BISSELL HOMECARE, INC. IS NOT LIABLE FOR INCIDENTAL OR

CONSEQUENTIAL DAMAGES OF ANY NATURE ASSOCIATED WITH THE

USE OF THIS PRODUCT. BISSELL’S LIABILITY WILL NOT EXCEED THE

PURCHASE PRICE OF THE PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

*EXCEPTIONS AND EXCLUSIONS FROM THE TERMS OF THE LIMITED WARRANTY

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES EITHER ORAL OR WRITTEN. ANY IMPLIED WARRANTIES WHICH MAY ARISE BY OPERATION OF LAW, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO THE ONE YEAR DURATION FROM THE DATE OF PURCHASE AS DESCRIBED ABOVE.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

NOTE: Please keep your original sales receipt.

It is your warranty.

©2006 BISSELL Homecare, Inc Grand Rapids, Michigan

All rights reserved. Printed in China Part Number 603-5603

Rev 02/06

Visit our website at: www.bissell.com
